Duct systems

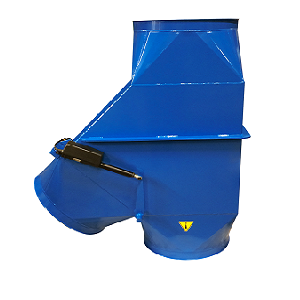

Diverters
6 products
Product catalogue
Dampers, valves & diverters
Explore our products
Advantages of choosing JKF
-
Effortless system design
Eliminate the burden of researching, sourcing, and ensuring compatibility between different components. Our team takes care of everything.
-
Faster project completion
With in-house manufacturing and streamlined procurement, we minimize project timelines, getting the dust extraction system operational quickly.
-
Reduced risk and hassle
Say goodbye to the complexities of coordinating with multiple vendors. A single point of contact ensures smooth communication and eliminates potential delays or complications.
-
Guaranteed performance
With complete control over the design, selection, installation, and commissioning, we guarantee the system meets the specific needs and delivers optimal dust extraction results.
-
Long-term Value
Our high-quality equipment and ongoing support ensure the investment in dust control pays off for years to come.
Filters and separators
JKF filter - Proven solutions for industrial air quality
A JKF filter is not just a component - it is an essential part of your dust extraction or process ventilation system. Our filters are engineered to handle under- and over-pressure applications and can be adapted to various operating conditions, air volumes, and dust types. At JKF, we offer a full range of filter types:
Blower and EC-filters
- Constructed as self-supporting sheet metal units with a round design for high strength and low weight
- Fitted with 180° tangential inlets to ensure effective separation of heavy materials before air passes through the filter medium
- Available with total separators for heavy and sharp particles
- Supplied with either PowerPulse® cleaning (BF-36, 60, 90 ET filters) or EC-cleaning (BF-8, 12, 20, 34, 55 filters)
- Discharge options include conical or scraper bottoms, or silo filters.
Key technical features
- Operating pressure: +/- 5000 Pa
- Filter area: 7.7–200 m²
- Operating temperature: -20 °C to 70 °C (optionally -40 °C)
- ATEX-certified with side venting or JKF’s VFV® vertical explosion relief system
SuperBlower filters
- Modular filter system in self-supporting high-tensile steel construction
- Designed for flexible capacity scaling by adjusting filter height and number of filter bags
- 180° tangential inlets available in standard and large sizes, located at one or both ends
- Equipped with PowerPulse® cleaning system
- Scraper bottom discharge adaptable for rotary valves, screws, buckets, or containers
Key technical features
- Operating pressure: +/- 5000 Pa
- Filter area: 221–1295 m²
- Operating temperature: -10 °C to 40 °C
- ATEX-approved with VFV® explosion relief venting
SuperJet filter
- Designed for continuous operation under- and over-pressure
- Made of high-tensile galvanized steel for strength and low weight
- Factory-assembled for fast installation (or supplied in separate parts)
- Inlet with “partial downflow” principle - pre-separates coarse particles before filtration
- ECO-PowerPulse® filter control system ensures effective cleaning
- Supplied with scraper bottom and discharge to B-500 or B-750 rotary valve, or JK-50S/JK-75S
Key technical features
- Operating pressure: +/- 5000 Pa
- Filter area: 172–269 m²
- Operating temperature: -20 °C to 65 °C
- ATEX-certified with side venting or VFV® explosion relief system
Designed for performance and safety
Across all JKF filter types, reliability and safety are key design priorities. Our filters are built to operate safely under pressures up to 5000 Pa and meet international standards for explosion protection (EN 14460, EN 14491). We also focus on ease of maintenance and system compatibility. Features such as:
- VFV® vertical explosion relief venting
- Inductive sensors for scraper bottoms
- Door contacts to ensure safe operation
- Modular ladders and gangways compliant with ISO/EN/DIN standards help make installation and ongoing maintenance both safe and efficient.
JKF filters for a wide range of industries
- Woodworking
- Food and agriculture
- Plastics and recycling
- Metal processing
- Paper and packaging
- Chemical and pharmaceutical sectors
One-stop-shop for complete solutions
JKF’s filters are an integral part of our one-stop-shop concept. In addition to our filters, we offer ducting systems, fans, separators, rotary valves and ATEX components.
With manufacturing in Denmark, Poland, and Malaysia - and a global network of partners - we support customers worldwide with fast delivery and expert technical assistance. When you choose a JKF filter, you choose proven quality, reliable performance, and a partner dedicated to clean air and sustainability.
Fan systems
JKF Fans - Proven performance across industries
Fans with large effect
Resistance occurs in all forms of air transport due to friction which means that overall pressure is reduced in the flow direction. To effect and maintain air transport, pressure has to be increased at some stage to compensate for pressure loss. This is usually achieved in fan systems using radial and axial fans designed to boost air in the direction of the outlet.
A fan’s effect is always based on the actual volume flow through the inlet. If the volume flow is indicated at a temperature different than that of the fan in a given operating situation, it has to be corrected.
Motors and fans are usually supplied as a unit. JKF has designed its fans for optimal performance, and it is vital to select the right one for any given task. The speed at which the fan is to run can be seen from the graph for that fan. The power input depends on resistance in the system.
Types of impellers
There are many types of an impeller, each of which is designed for a given task:
Radial fan with P-impeller
Has flat backward-inclined blades and is designed for clean air transport. This type has the following properties:
- High efficiency
- Robust construction
- Only small variations in volume flow, if resistance fluctuates
Radial fan with T-impeller
Has backward-inclined blades and is designed for transport of a range of materials. This type has the following properties:
- Medium and high-pressure versions
- Robust construction
- High degree of self-cleaning
- Can handle large material volumes
- Special version available for transport of plastic and paper
Designed for industrial challenges
JKF fans are developed for use in a wide variety of industries - woodworking, food processing, metalworking, chemical production, agriculture, and many more. Depending on your specific application, JKF offers both direct and belt-driven fan systems designed to handle everything from clean air to abrasive and fibrous materials. Our fan range includes:
- JK-20D to JK-40D direct-driven fans - compact, efficient, perfect for clean air and light materials.
- JK-30K to JK-75K belt-driven fans - capable of moving large air volumes with high static pressure.
- T-200K/T-300K and T-200D/T-300D fans - built for concentrated material handling over long distances.
- High-capacity axial and radial fans transporting over 111,000 m³/h.
Each JKF fan is constructed from high-quality materials and engineered for long life, quiet operation, and low maintenance. Options include stainless steel components, explosion-proof (ATEX) motors, and acoustic booths for noise reduction.
A one-stop-shop for air handling components
As part of our one-stop-shop philosophy, JKF offers much more than just fans. We supply a complete ecosystem of clean air solutions: ducting systems, filters, separators, rotary valves, ATEX components, silencers, vibration dampers, and accessories - all designed to integrate seamlessly with JKF fans.
This way you can design entire air handling and dust extraction systems with perfect compatibility, ensuring maximum system efficiency and reliability.
Built on partnership and sustainability
At JKF, customer collaboration is part of our DNA. We continuously evolve our products based on user feedback and real-world experience. This ensures that JKF fans always meet the practical demands of modern industry.
We also strive to reduce our environmental impact - not just through the efficiency of our products, but also through our ISO 9001, ISO 14001, and ISO 45001 certifications, which promote quality, sustainability, and workplace safety.
Global presence, local support
JKF Universe operates with production facilities in Denmark, Poland, and Malaysia, supported by a strong network of partners. This ensures that we can deliver tailored solutions and responsive service to customers worldwide.
Whether you are building a new system or optimizing an existing one, JKF’s fan systems provide the power, precision, and reliability to help you achieve clean, safe, and energy-efficient operations.
Duct systems
General duct systems
JKF Ducting - A proven choice for clean air
JKF is a trusted name in industrial air handling, offering a comprehensive range of ducting components and accessories. Our focus is always on creating solutions that are easy to design, install, and maintain - all while ensuring a healthy working environment and protecting your equipment and processes.
Galvanised and welded duct systems
JKF's wide range of ducts includes galvanised duct systems and welded duct systems in 2 and 3 mm material thickness which represents the basic element in extraction and transport of particles and air.
JKF’s duct systems have a circular cross-section, with a wide range of ducts, bends, trouser-, branch-, end-, transition and taper pieces, throttle valves, diverters, jet- and rain caps etc. to ensure individual adaptation and a high degree of flexibility. Our catalogues cover JKF’s standard components for the following dimensions ø80 - ø1000 mm. If you need customized components, do not hesitate to contact our dealers for further information.
Ducting systems for every industry
JKF’s ducting systems are designed for use across a broad range of industries, including woodworking, food processing, metalworking, agriculture, and chemical production. The modular design of our systems enables quick adaptation to various installation requirements - whether space is limited or airflows are complex.
Thanks to our extensive selection of complementary components - such as pressed bends, segment bends, branch pieces, throttle valves, and jet and rain caps - JKF ducting offers unrivalled flexibility. Our jet caps, for example, are available in diameters ø120-ø1250 mm and are equipped with internal cones to ensure efficient drainage of rainwater. Similarly, our rain caps (ø80–ø1250 mm) come with skirts and internal cones for optimal protection.
For applications requiring custom dimensions or special configurations, our team is ready to help with tailored solutions. Many of our components are available in different assembly variants, such as pull rings, flanges, and smooth-end versions, to match your system requirements.
Why choose JKF Universe?
As a global leader in clean air solutions, JKF Universe offers more than just products - we deliver peace of mind. Our customers benefit from:
- Proven expertise: Over 65 years of experience in clean air technologies
- One-stop shop: Full product range including ducting systems, filters, fans, separators, rotary valves, and ATEX components.
- Global reach: Manufacturing facilities in Denmark, Poland, and Malaysia.
- Sustainability: Certified ISO 9001, ISO 14001, and ISO 45001 for quality, environment, and occupational health & safety.
Our one-stop-shop concept makes life easier for our customers. Instead of sourcing components from multiple suppliers, you can find everything you need for a complete dust extraction or process ventilation system under one roof.
Built on partnership
At JKF, we see our customers as partners. We actively listen to their feedback and work continuously to improve our product portfolio. Many innovations in our ducting systems have been driven by this close collaboration. Whether you’re an engineer looking for high-performance components or an end-user needing robust and easy-to-maintain ducting, JKF’s solutions are designed with you in mind.
The path to cleaner air
Clean air is more than a product - it is a philosophy at JKF. Our duct systems play a vital role in improving air quality, safeguarding employee health, and enhancing production efficiency. We remain committed to delivering solutions that help industries operate cleaner, safer, and more sustainably - today and for the future.
Duct systems in stainless steel
Stainless steel ducts have many advantages
Today, stainless steel ducts are used more and more, not only for plants where it is required – e.g. in some food industries, but also in other plants where the customer requests the increased strength and durability. The stainless steel duct system has smoother surfaces and is more hard-wearing than the standard duct systems and the risk of peeling of galvanisation or coating has been eliminated. JKF's stainless steel duct system covers a wide range of ducts, bends, valves, transition pieces, jet caps etc.
The duct system can be used for all extraction purposes for transport of particles and air, and includes all the components needed for a complete extraction solution.
High-pressure extraction
Complete programme with large flexibility
JKF’s product programme for high pressure extraction is built up as a flexible system. It gives the possibility of individual building up and adjustment and contributes to ensure the right solution regardless industry.
